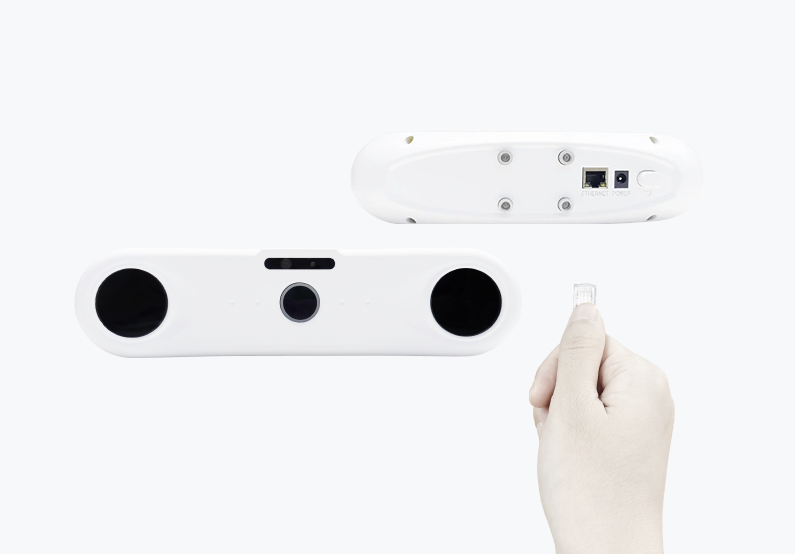

OP-M311

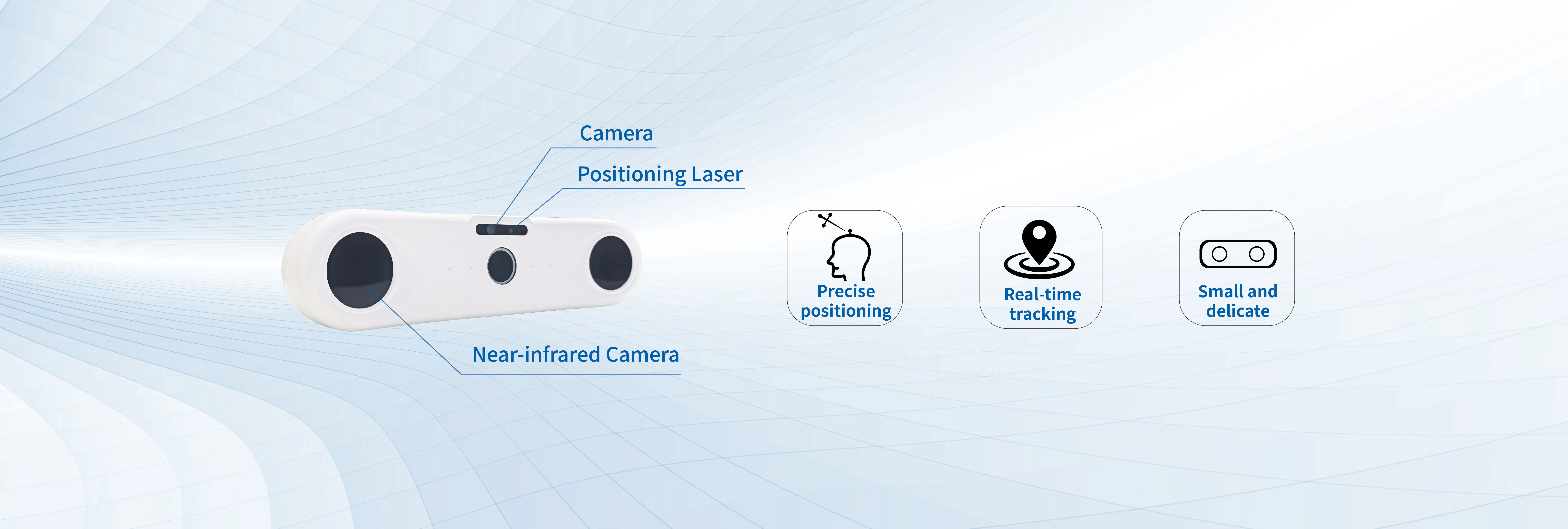

Precise positioning ｜ Real-time tracking ｜ Small and delicate

AimPosition OP-M311 is built on the FPGA technology platform, which improves the high synchronization and stability of binocular vision image acquisition, effectively suppresses image noise, and dynamically realizes the precise positioning and real-time tracking of surgical tools in a specific three-dimensional space with an accuracy of 0.2 mm. The OP-M311 has a small and compact form factors that can be used in dental, neurosurgery, ENT and other surgical robot or surgical navigation applications that require a small operating space.

Specifications

Sizeparameter
Positioning accuracy 0.2mm (RMS)
Maximum sampling frequency 60Hz
Data port Gigabit Ethernet port
Maximum number of identification tools 50
Auxiliary positioning second class laser
Tool type Active, passive
The maximum number of tools 200 marks
Secondary development 1, API function; 2. Use Demo
Data type NIR image, 3D coordinates, tool 6D pose, color image
Weight 0.8KG
Instrument size 260mm×80mm×65mm (length × width × height)

Field of view

Product features

· Compact hardware design: with higher integration, smaller size, weight only 0.8 kg;

· High-speed data transmission: Gigabit Ethernet high-speed transmission tracking data, stable and reliable;

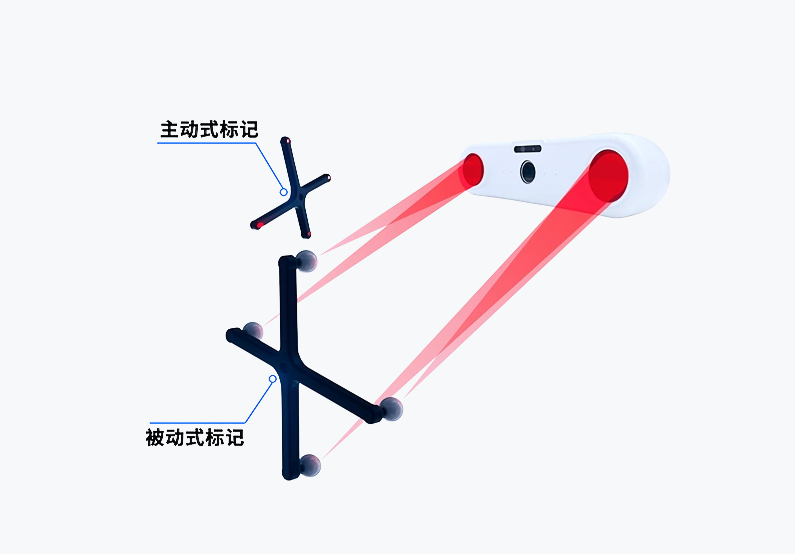

· Compatible with active and passive marking points: compatible with active and passive marking points, up to 200 marking points can be tracked simultaneously.

Specifications

Field of view

Product features
