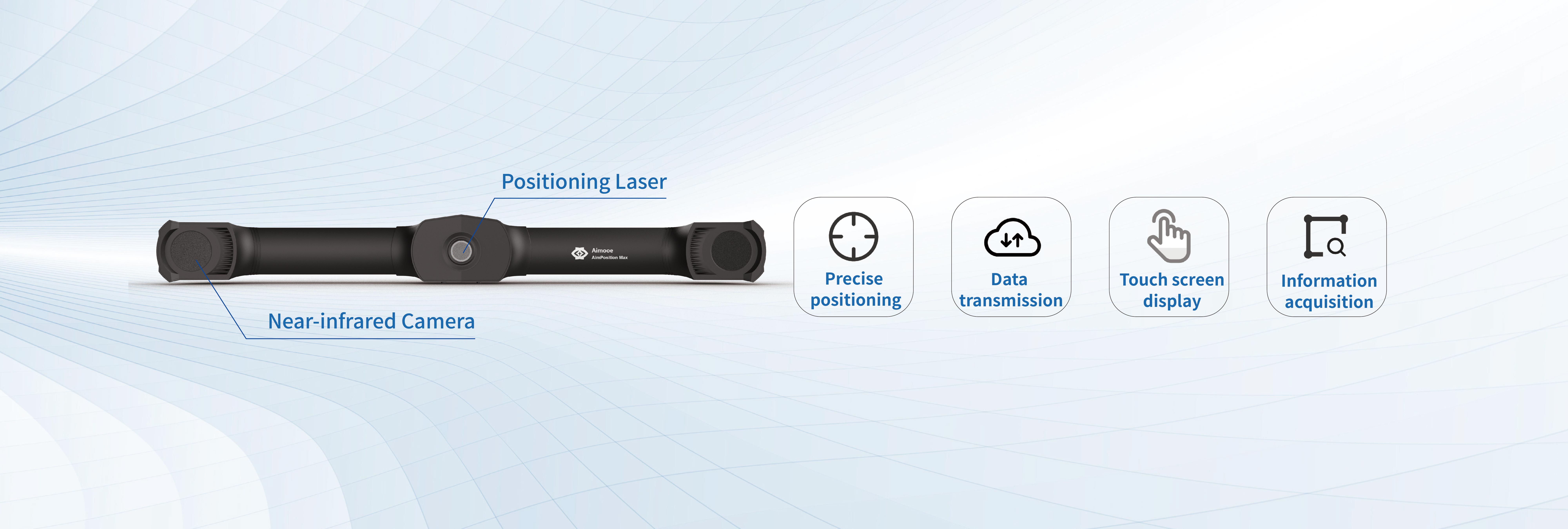

AimPosition OP-I810



OP-I810


Image processing | Easy to use | Precise intelligence


The AimPosition OP-I810 can be used to solve the challenges of a wide range of applications in various industries, including aerospace, automotive, heavy industry, foundry and academic research, providing high precision measurement methods for a wide range of applications. This includes parts to CAD inspection, reverse engineering, fixture inspection, deformation analysis, door and cladding testing, structural testing, and robot measurement and guidance.


Specifications
  • Sizeparameter
  • 191/5000
  • 翻译
  • Positioning accuracy 0.12mm (RMS)
  • The sampling frequency is 60Hz
  • Hardware ports Ethernet and 12V power ports
  • Transfer rate Ethernet: 1000Mbps
  • Power supply for the network port POE
  • Data type NIR image, 3D coordinates, tool pose
  • Positioning laser Class II laser
  • Tag Type: Active, passive
  • The maximum tracking number is 200
  • Secondary development 1, API function; 2. Use Demo
  • Instrument size 1110mm×148mm×130mm (L×W×H)
Field of view
Field of view
